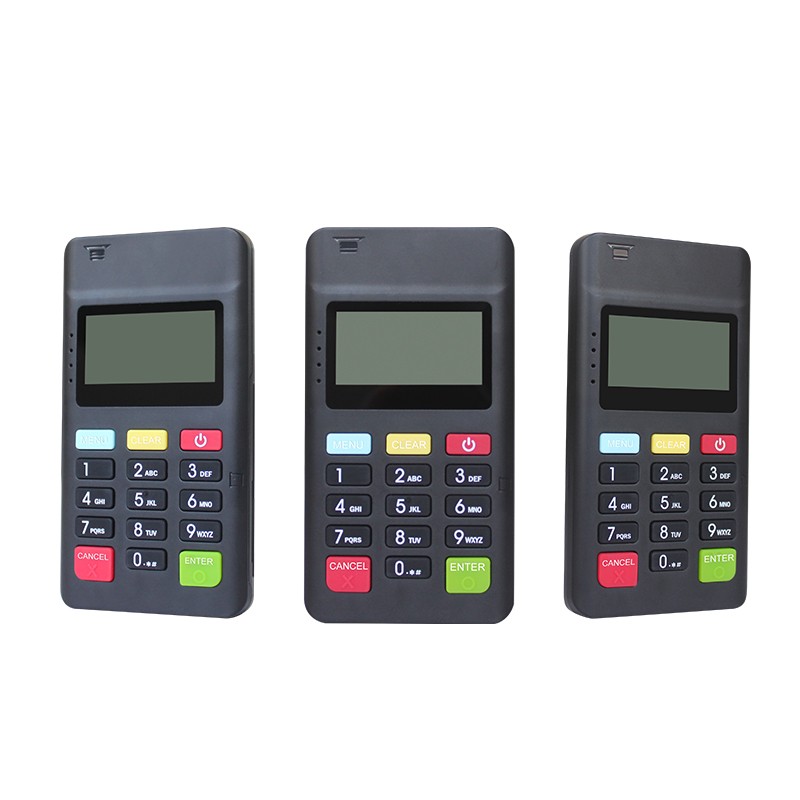

Z70 MPOS payment terminal with physical keyboard, 1.77 inch TFT LCD screen, supporting magnetic card, smart card, RFID card, through Bluetooth and mobile terminal communication. Pocket size, easy to carry, with a password keyboard, safe and reliable. Colorful LCD screen, Appearance three-layer design, multicolor case.
Z70 MPOS
Features
- Pocket size, compact, easy to carry
- Physical keyboard and tamper device for user’s security
- Low power consumption,200mAh Li-ion battery, long standby time
- 1.77 inch TFT LCD screen for display
- With a Built-in buzzer and 4 LED indicator for error alerts
Specifications
| Model | Z70 |
| CPU | Security Chip |
| Display | 1.77 inch TFT screen(128*64) |
| Magnetic Card | 1/2/3 track, bidirectional swipe, ISO 7811 |
| IC card | ISO 7816 |
| Contactless card reader | Support ISO/IEC 14443 Type A&B、Mifare,felica card, Compliant with Requirements of EMV/qPBOC、PAYPASS |
| USB interface | Micro USB ×1 |
| Communication | Dual mode:Support BLE protocol, SPP protocol, compatible with iOS, android 2.3 or higher OS |
| Encryption Algorithm | DES, 3DES, RSA, SHA-256, AES, etc. |
| Battery | Lithium polymer rechargeable battery, 3.7V, 200mAh |
| Operate current | 50mA-90mA |
| Standby current | 31mA-45mA; Auto power off without operation in 5 min |
| Adapter | 5V 80mA |
| Size | 111mm×59mm×13.2mm |
| Certification | EMV L1 & L2 |
